4 Capacitor kit for Nintendo Game Boy Pocket Nintendo console repair power, sound & dim screen replacement | ZedLabz
Seen a lower price or need a custom quotation? >>> Submit a request
- Capacitor set for Nintendo Game Boy Pocket.
- Includes 4 SMD capacitors - Panasonic & Nichicon 105°c 2000h capacitors.
- Compatible with the Game Boy Pocket mainboard.
- Can fix low volume output, dim LCD screen issues or no power.
- Requires internal soldering.
Description:
This repair kit includes 4 capacitors needed to resolve problems such as the Game Boy Pocket not powering on, experiencing volume issues or a dim LCD screen.
The 4 capacitor kit is compatible with Nintendo Game Boy Pocket console.

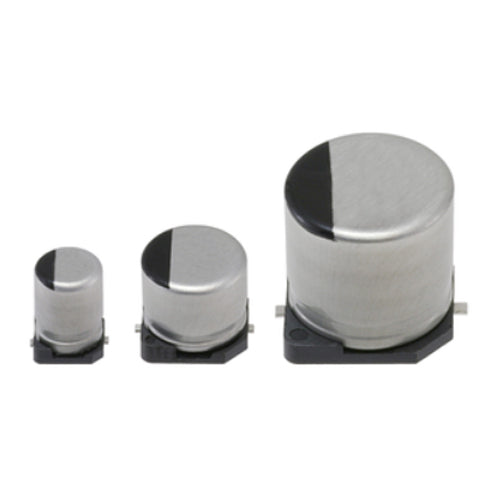

These are Panasonic & Nichicon capacitors in the following values:
1 x 33uf 25V (Motherboard location C29)
1 x 330uf 6V (Motherboard location C30)
1 x 100uf 6V (Motherboard location C31)
1 x 100uf 6V (Motherboard location C32)
A reasonable level of soldering ability are required to install the replacement capacitors. The console must be opened to install.
A Philips #00 and Tri-wing security screwdriver are required to open the console (Not included).
Soldering iron, solder & desoldering braid required to fit capacitors, (not included).
| Platform | Nintendo Game Boy Color |
|---|---|
| Colour | Silver |
| Manufacturer | ZedLabz |
| EAN | 5056026434218 |
| SKU | 700495 |
| Weight | 11g |
