Retro Pixel IPS LCD screen kit for Nintendo Game Boy DMG-01 console | Funnyplaying

£35.48

Qty:

Hurry, Only 10 left in stock!

Seen a lower price or need a custom quotation? >>> Submit a request

Trade price EXCLUDING VAT.
Free UK Shipping* More info
Downloadable VAT invoice
Additional volume based discounts available
Same working day dispatch* (on most orders - more info)

Description
Questions
Information
Reviews

NOTE: You should do a bench test before fitting this kit, testing the LCD screen with the protective film on, before installing it into the shell, any issues with the screen kit should be reported to support@zedlabz.com before install.

You will need a modified glass screen lens with an enlarged viewing window for this kit (not included), the original size screen lens window is too small, and will obscure some of the larger LCD panel this upgrade offers.

Modified IPS ready or DIY manually cut shell is required to use this kit, centering brackets (not included) but recommended for easier screen alignment.

Features:

- Retro Pixel IPS LCD screen kit for Game Boy DMG-01.
- Grayscale adjustment button for brightness.
- Built in 36 retro colour combinations.
- Compatible with Nintendo Game Boy DMG-01 console.
- IPS sized lens cover required - Not included

Description:

Retro Pixel IPS LCD Screen kit for Nintendo Game Boy DMG-01 handheld console.

PLEASE NOTE:

You will need a IPS sized screen lens - Not included with this kit

Shell modification (cutting of plastic inside the shell) is required to fit this kit or alternatively an IPS ready shell replacement can be used.

LCD and ribbon have the overall power consumption between 0.3w to 0.8w.

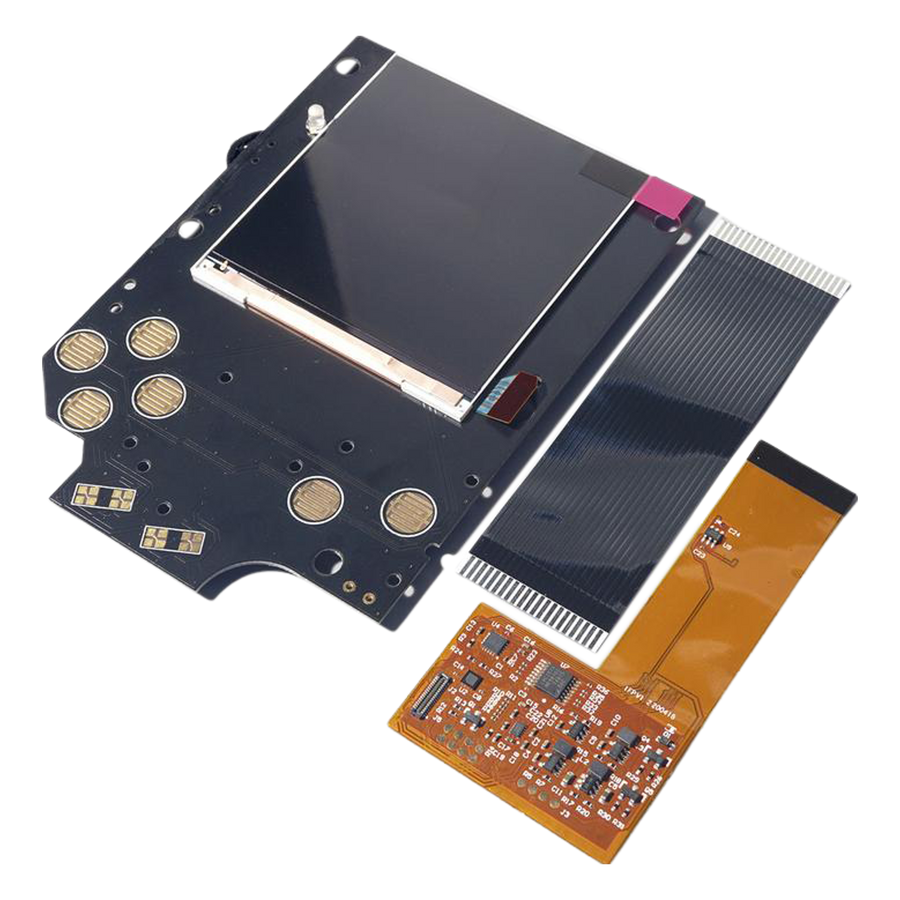

Kit contains: 1x IPS LCD, 1x DMG ribbon, 1x 3M installation tape, , 1x DMG button board, 1x DMG motherboard cable.

This kit requires retrofitting the construction of the shell, soldering of speaker. Please seek professional advice if unsure.

When the grid line mode is turned on, some game scenes will flash when switching, which is a refresh problem of the motherboard of the game machine itself. There will also be on the original screen but the original screen refresh rate is so slow that it is not easy to find. This does not affect the perfect display effect of IPS LCD.

Due to the limitation of the early technology, the DMG motherboard adopts analog sound and has a Noise floor. The assembly of IPS LCD will increase of the host and increase the Noise floor, but it is subtle and difficult to detect at a distance of 10cm.
