Bottom LCD ribbon socket for 3DS Nintendo flex cable ZIF FPC connector | ZedLabz
Seen a lower price or need a custom quotation? >>> Submit a request

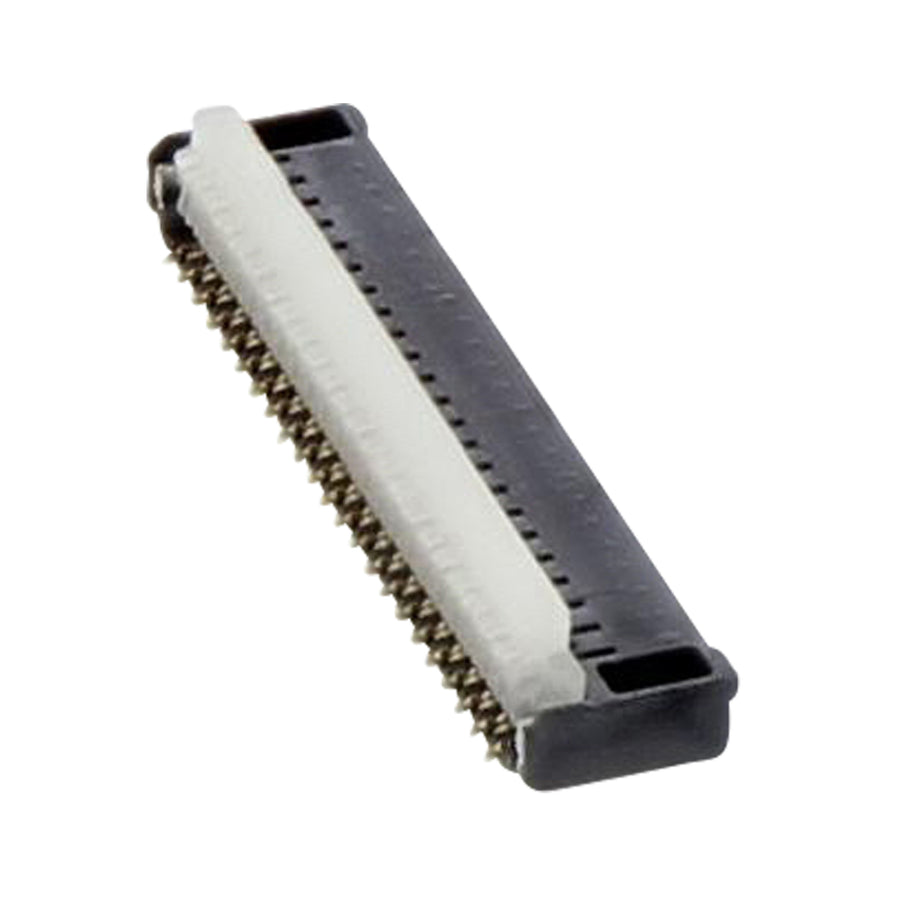

- Replacement ZIF connector socket for Nintendo 3DS lower screen.
- Connects the LCD screen display flex cable to the mainboard of the console.
- 44 pin SMD type connector, dimensions 12.5mm x 2.5mm x 1.0mm
- Detailed soldering needed.
- Requires internal fitting and soldering, tools not included.
Description:
Replace a broken LCD ribbon cable ZIF connector with this replacement part.
The flip lock can commonly become broken, which prevents the LCD ribbon from making a connection to the mainboard, and ultimately resulting in no display on the screen.
Typically the fragile plastic locks are almost impossible to replace without removing the entire zif connector, soldering a new one in place will normally be the only option.
Other no display issues may also be resolved by replacing the ribbon cable connector but do consult an expert if you are unsure and not electronics trained.
Installing the part requires detailed soldering skills.
Requires internal fitting and soldering, tools not included.
| Platform | Nintendo 3DS |
|---|---|
| Colour | Grey |
| Manufacturer | ZedLabz |
| EAN | 5056026430388 |
| SKU | 700065 |
| Weight | 3g |
